さて, 4回目の今回は全探索。
考えられる盤面を片っ端から全探索します。
アルゴリズム
- 一番上の行の最も左のキーをk_1, 2番目に左のキーをk_2, ..., 一番上の行の最も右のキーをk_i, 二番目に上の行の最も左のキーをk_{i+1},..., 一番下の行の最も右のキーをk_n というようにキーにインデックスをつける
- 行に関する制約を満たすようにキーを配置する。そのとき, それぞれのキーはできるだけ左詰めにする(初期状態)
- 全ての列について、キーを満たすマスの塗り方がなされているかを検査する
- もし全ての列について、条件を満たしていればその盤面を出力する
- もし条件を満たしていない列が一つでもあれば、次の操作を行う
- l = n
- キーk_lが右にスライドできるまで l = l - 1と更新する
- キーk_lが右にスライドできるならば, 右にひとマススライドし, k_{l+1} ~ k_nキーを, 可能な限り左詰めで再配置する
- l = n
- もし全ての列について、条件を満たしていればその盤面を出力する

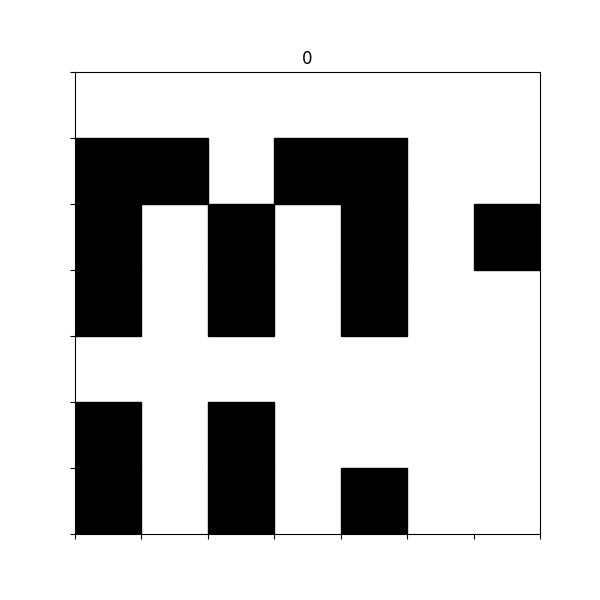

実行例
かもめ
問題
答え
探索中...
途中で切りました。見るからに, 遅いアルゴリズムですが, 正解を見逃すことはありません。
次回はこの全探索(左詰め)をより効率よく行う方法としてDFS(深さ優先探索)を紹介します。
(要するに, 今回は咬ませ犬)
ソースコード
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
# [2017-01-05] 基準となるプログラム | |
# [2017-01-06] 全列挙探索(左詰め)を実装 | |
import subprocess | |
import matplotlib.pyplot as plt | |
import matplotlib.ticker as ticker | |
from time import sleep | |
from sys import argv | |
from itertools import product | |
# Global | |
R = None | |
C = None | |
row_keys = None | |
col_keys = None | |
def usage(): | |
print('python3 {f} puzzle_file'.format(f=__file__)) | |
def main(puzzle_file): | |
# 問題の入力 | |
get_puzzle(puzzle_file) | |
# rowinfo[keyix] = (r, ix) | |
rowinfo, num_keys = get_rowinfo() | |
# 全列挙 | |
B = power(rowinfo, num_keys) | |
printB(B, 'Finish!') | |
def power(rowinfo, num_keys): | |
imgix = 0 | |
# key2pos[keyix] = (r, c, key) | |
key2pos = set_B(0, rowinfo, num_keys) # 初期状態 | |
B = gene_B(key2pos, num_keys) | |
while not feasible(B): | |
printB(B, imgix); imgix += 1 | |
l = 0 | |
keyix = num_keys - 1 | |
while not can_slide(keyix-l, rowinfo, key2pos): | |
l = l + 1 | |
key2pos[keyix-l][1] += 1 # keyix-lを1つ右にスライド | |
key2pos = set_B(keyix-l+1, rowinfo, num_keys, key2pos) | |
B = gene_B(key2pos, num_keys) | |
return B | |
def gene_B(key2pos, num_keys): | |
B = [[-1 for c in range(C)] for r in range(R)] | |
for keyix in range(num_keys): | |
r, c, key = key2pos[keyix] | |
for k in range(key): | |
B[r][c+k] = 1 | |
return B | |
def set_B(keyix, rowinfo, num_keys, key2pos=dict()): | |
# update key2pos | |
if keyix < num_keys: | |
for kix in range(keyix, num_keys): | |
r, ix = rowinfo[kix] | |
cor_key = row_keys[r][ix] | |
if ix == 0: | |
key2pos[kix] = [r, 0, cor_key] | |
else: | |
pre_r, pre_ix, pre_key = key2pos[kix-1] | |
key2pos[kix] = [pre_r, pre_ix+pre_key+1, cor_key] | |
return key2pos | |
def can_slide(keyix, rowinfo, key2pos): | |
r, ix = rowinfo[keyix] | |
_, c, _ = key2pos[keyix] | |
keys = row_keys[r] | |
if c < C-sum(keys[ix:])-len(keys[ix:])+1: | |
return True | |
else: | |
return False | |
def get_rowinfo(): | |
dic = dict() | |
keyix = 0 | |
for r in range(R): | |
keys = row_keys[r] | |
for ix in range(len(keys)): | |
dic[keyix] = (r, ix) | |
keyix = keyix + 1 | |
return dic, keyix | |
def feasible(B): | |
"""Bが列に関して, 制約を満たしているかを調べる""" | |
for c in range(C): | |
e = '' | |
for r in range(R): | |
e += ['a', 'b'][B[r][c] == -1] | |
e = [elm for elm in e.split('b') if elm] | |
e = list(map(len, e)) | |
if col_keys[c] != e: | |
return False | |
return True | |
def printB(B, msg=''): | |
subprocess.run(['clear']) | |
print('\n'*5) | |
print(msg) | |
for r in range(R): | |
for c in range(C): | |
if B[r][c] == 1: | |
sq = '■' | |
elif B[r][c] == -1: | |
sq = ' ' | |
else: | |
sq = '-' | |
print(sq+' ', end='') | |
print() | |
sleep(0.05) | |
def imageB(B, title=None, savename=None): | |
fig = plt.figure(figsize=(6, 6)) | |
ax = fig.add_subplot(111) | |
ax.set_xlim([0, C]) | |
ax.set_ylim([0, R]) | |
ax.xaxis.set_major_locator(ticker.NullLocator()) | |
ax.yaxis.set_major_locator(ticker.NullLocator()) | |
for r, c in product(range(R), range(C)): | |
if B[r][c] == 1: | |
pos = (c, R-r-1) | |
ax.add_patch(plt.Rectangle(pos, 1, 1, color='k')) | |
if B[r][c] == 0: | |
x = (c+0.3, c+0.7) | |
y = (R-r-0.5, R-r-0.5) | |
ax.plot(x, y, color='k', linewidth=0.2) | |
if title is not None: | |
ax.set_title(title) | |
if savename is not None: | |
plt.savefig(savename) | |
else: | |
plt.show() | |
plt.close() | |
def get_puzzle(puzzle_file): | |
global R, C, row_keys, col_keys | |
row_keys = [] | |
col_keys = [] | |
for line in open(puzzle_file, 'r'): | |
if not line.strip(): | |
continue | |
sigh, *keys = line.split() | |
if sigh == 'R': | |
R = int(keys[0]) | |
if sigh == 'C': | |
C = int(keys[0]) | |
if sigh == 'r': | |
keys = list(map(int, keys)) | |
row_keys.append(keys) | |
if sigh == 'c': | |
keys = list(map(int, keys)) | |
col_keys.append(keys) | |
if __name__ == '__main__': | |
if len(argv) == 2: | |
main(argv[1]) | |
else: | |
usage() |
